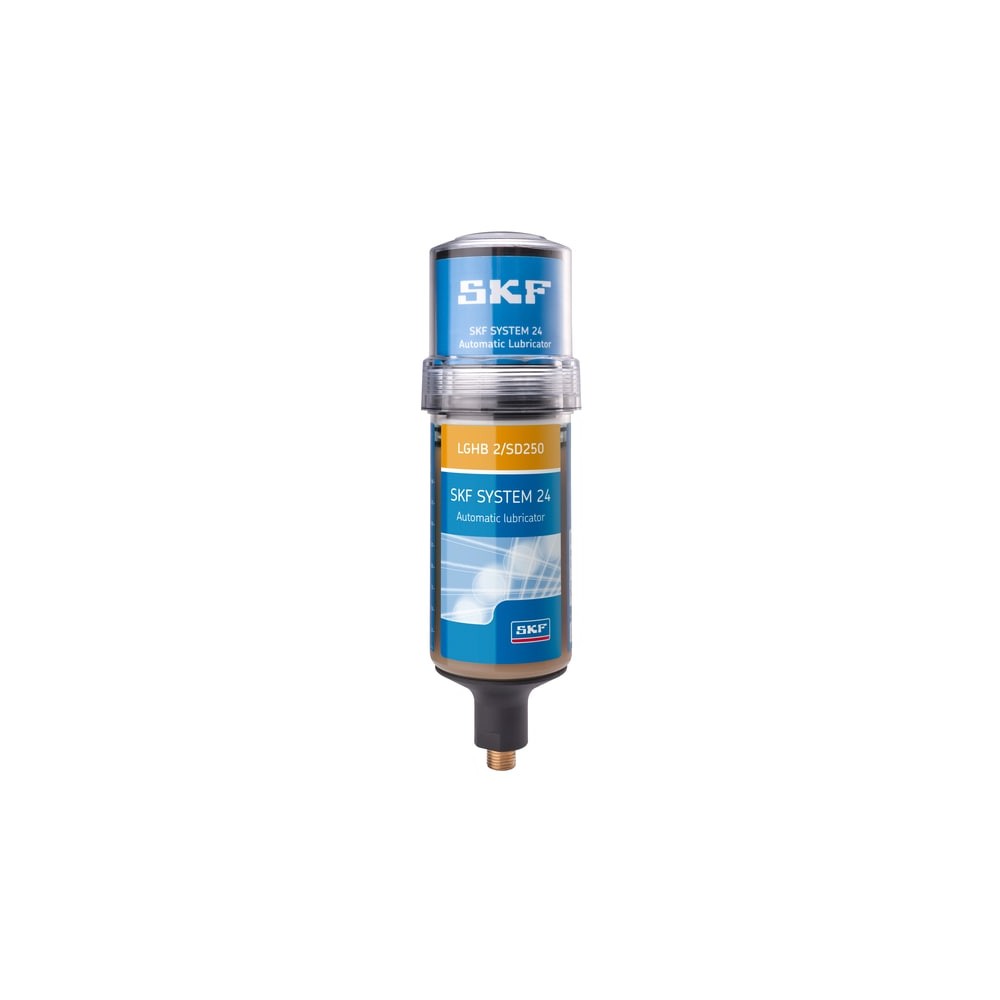

SKF TLSD 250/HB2 Single point automatic lubricators

SKF TLSD 250/HB2 Single point automatic lubricators

Product Code: TLSD 250/HB2

Part/No: Eshop041975

Brand: SKF

Click here for more details

TLSD 250/HB2 is filled with SKF LGHB 2 grease for high loads, wet environments and high temperatures, recommended for plain bearings, conveyors and applications with high loads and low speeds. Our electro-mechanical single point automatic lubricators are

Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar during the dispensing period
LED status indicators
Compact size allows installation in restrictive areas
Suitable for both direct and remote installation
Supplie

€106.09

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Lubricant operating temperature range -20 to +100 °C

Lubricant quantity 125 ml

Performance

Width across flats 1 5 bar

Properties

Lubricant LGHB 2

Recommended applications Plain bearings,Conveyors,Applications with high loads and low speed

Power source Battery pack

Product weight 0.73 kg

Ambient temperature range 0 – 50 °C

Battery Battery pack, TLSD 1-BAT

Battery capacity 2.7 A·h

Battery voltage 4.5 V

Degree of protection (IP) IP 65

Drive mechanism Electro mechanical

Highest dispense setting 8.3 ml/d

Lowest dispense setting 0.7 ml/d

LED indicator Green LED (every 30 sec)= OK,Yellow LED (every 30 sec)= Pre-warning low battery power,Yellow LED (every 5 sec)= Pre-warning high back pressure,Red LED (every 5 sec)= Warning, stopped on error,Red LED (every 2 sec)= Warning, empty cartridge

Battery type Alkaline manganese

Maximum feed line length 3 m

Nominal emptying time User adjustable= 1, 2, 3, 4, 6, 8, 10 and 12 months

Lubricant description High viscosity, high loads and high temperatures grease

Logistics

EAN code 07316575835545

Product net weight 0.73 kg

eClass name Lubrication system (single-point)

Pack gross weight 0.8125 kg

UNSPSC name Grease
