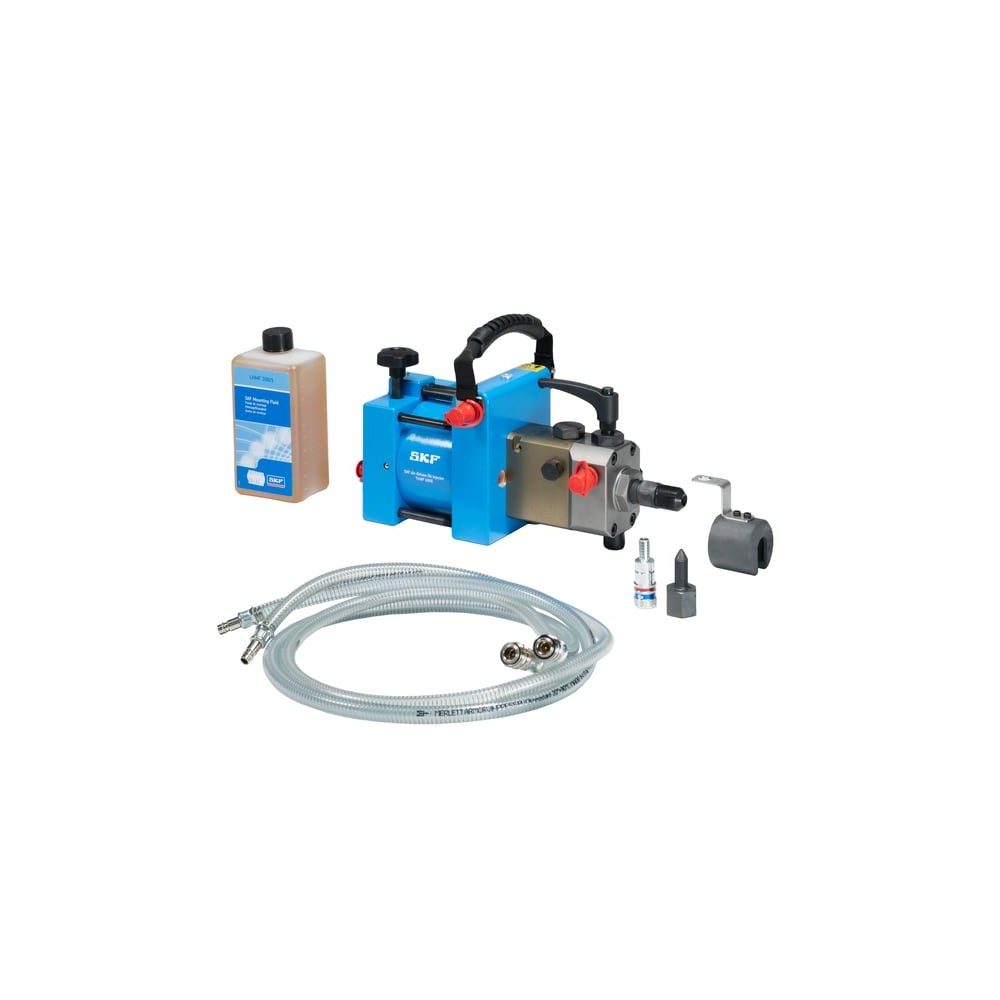

SKF THAP 400E Hydraulic pumps and oil injectors

Product Code: THAP 400E

Part/No: 033671

Brand: SKF

Click here for more details

The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for simlar applications for pressures upto 400 MPa/58,000

Time savings compared to hand operated oil injectors
Portable
Continuous supply of oil
Internal air pressure limiter helps ensure safe operation
Low air consumption
Wide operating temperature range
Sturdy storage boxes

€9,155.17

Tax included

SEND REQUEST

100% Shopping Security

On Request

Dimensions

Dimensions (WxLxH) 171x405x202 mm

Performance

Width across flats 1 4000 bar

Maximum pressure 400 MPa

Properties

Content Air driven pump 400 MPa (58 000 psi),2x Low pressure hoses with couplings(1.5 m/4.9 ft),Air hose coupling(f),Mounting fluid (1 ltr/0.22 gal),Instructions for use,Carrying case

Recommended applications OK Couplings,Large pressure joints,Oil injection for large gears and railway wheels

Colour Blue, metallic grey

Total product weight 21.5 kg

Housing material Aluminium,Alloy tool steel

Product weight 13 kg

Operating temperature range 0 – 45 °C

Pressure gauge Optional

Volume per stroke 0.64 ml

Volume per stroke 0.64 cm³

Pressure ratio 1

Oil container No

Oil outlet thread G 3/4
