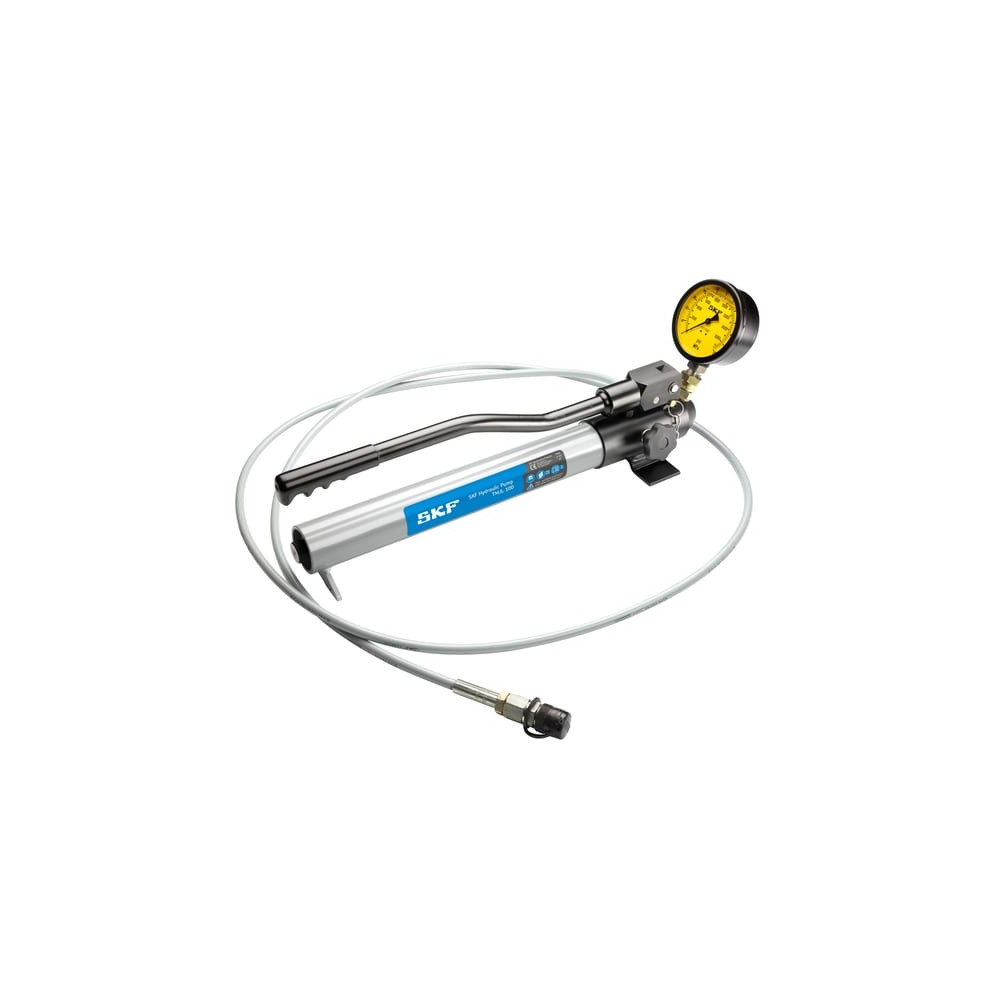

SKF TMJL 100 Hydraulic pumps and oil injectors

Product Code: TMJL 100

Part/No: 033856

Brand: SKF

Click here for more details

The SKF TMJL 100 pump is mainly intended for use with hydraulic nuts (upto size HMV 92E) to mount bearings or components where a maximum pressure of 100 MPa(14,500 psi) is required. The TMJL 100 can be used for oil injection applications for removing rol

Oil container capacity 800 cm³ (48 in³)
Fitted with a pressure gauge
Packed in a sturdy protective case
Supplied with an extra litre of fluid

€2,251.84

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Performance

Width across flats 1 1000 bar

Maximum pressure 100 MPa

Properties

Content Pump with mounting fluid,pressure hose,quick connection coupling,quick connection nipple, carrying case,1l can of mounting fluid

Recommended applications SKF hydraulic nuts smaller than or equal to HMV 92E,Oil injection applications where the maximum pressure is 100 MPa (14 500 psi),Suitable for SKF hydraulic assisted pullers TMHP series

Colour Grey,Black

Total product weight 18.3 kg

Housing material Steel pump body

Relative humidity 0 to 75%, non-condensing

Product weight 13 kg

Operating temperature range 10 – 35 °C

Oil container capacity 800 ml

Pressure gauge Yes, analogue

Suitable for Drive up method No

Type of pump Single stage

Volume per stroke 1 ml

Connection nipple G 1/4 (male)
