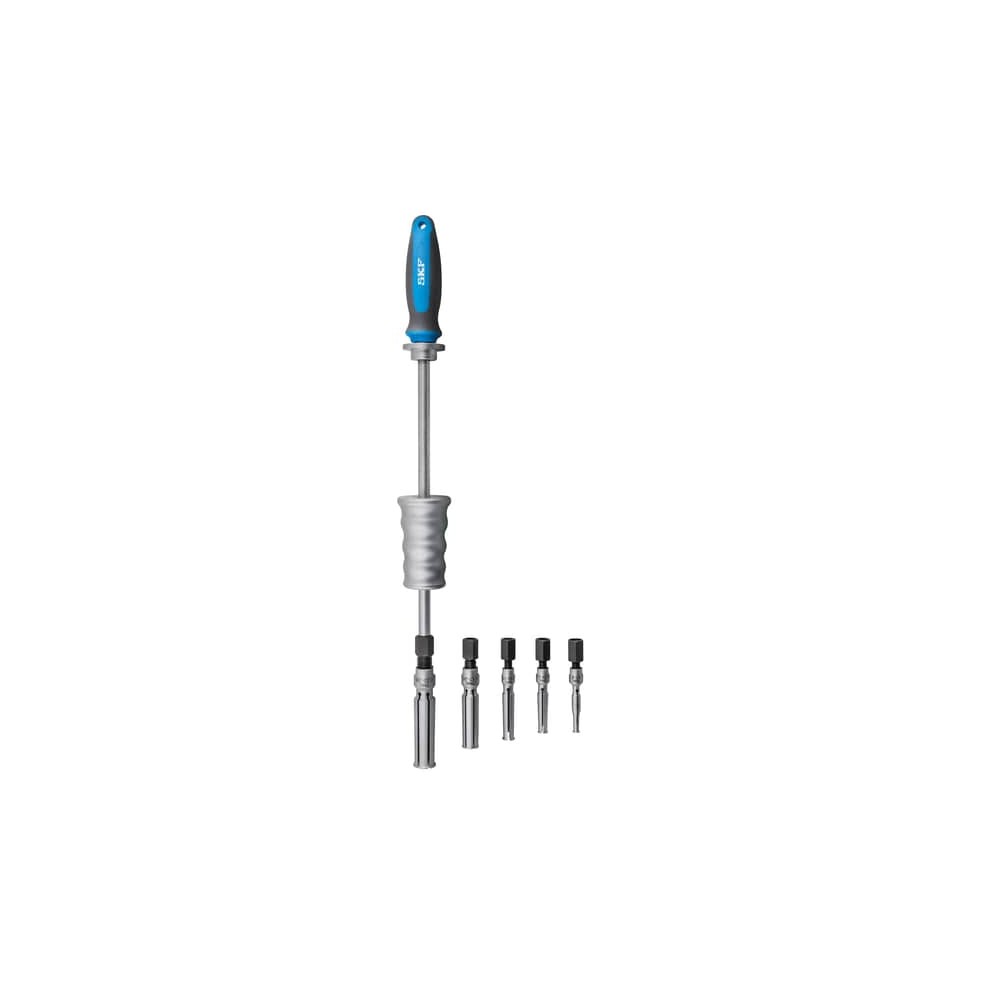

SKF TMIC 7-28 Internal pullers

Product Code: TMIC 7-28

Part/No: 033849

Brand: SKF

Click here for more details

The SKF Internal Bearing Puller Kit TMIC 7-28 is designed for dismounting bearings from housings, where the fit is on the outer ring. The puller is constructed for optimum strength and durability and various extractors are included to support a wide range of bearing bore diameters. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. This set features extractors with expandable collet design and it is especially suitable for applications with limited space behind the bearing.

Expandable collet design made of high strength materials
Especially designed for applications with only limited space to grip behind the bearing
Suitable for bore diameters 7 - 28 mm
Supplied in a sturdy carrying case

€557.94

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Performance

Properties

Material Medium carbon steels and alloy engineering steels, hardened and tempered

Coating Zinc coated, Black phosphated

Case dimensions (lxhxw) 530 x 85 x 180 mm

Needed free depth behind workpiece TMIC C7-9: 3.0 mm; TMIC C10-12: 3.0 mm;TMIC C12-15: 4.0 mm;TMIC C17-20: 5.3 mm;TMIC C22-28: 6.7 mm

Housing depth (max) TMIC C7-9: 54 mm; TMIC C10-12: 56 mm;TMIC C12-15: 62 mm;TMIC C17-20: 70 mm;TMIC C22-28: 90 mm

Total extractor length TMIC C7-9: 86 mm; TMIC C10-12: 89 mm;TMIC C12-15: 112 mm;TMIC C17-20: 106 mm;TMIC C22-28: 135 mm

Slide hammer total length 417 mm

Workpiece width (max) TMIC C7-9: 13.3 mm; TMIC C10-12: 46.5 mm;TMIC C12-15: 54 mm;TMIC C17-20: 59 mm;TMIC C22-28: 90 mm

Suitable for bearing type (s) All

Content 5x Collets size C7-9 to C22-28;1x slidehammer, size S1;1x Printed Instructions for Use (language free);1x Carrying case (size X)

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) No

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Sliding hammer

Suitable for workpiece dismounting from a Housing Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No

Suitable for bearing dismounting from a Tapered seating (conical shaft) No

Total number of extractors in kit 5x : TMIC C7-9, TMIC C10-12, TMIC C12-15, TMIC C17-20, TMIC C22-28

Total number of sliding hammers in kit 1x :TMIP S1

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing

Slide hammer weight(s) 1.0 kg

Special features Reversible arms;Selflocking arms

Total product weight 2.88 kg

Width of grip internal 7 – 28 mm

Logistics

Pack gross weight 3.06 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316576896255

Product net weight 2.88 kg

eClass code 23-05-19-01
