SALE!

SKF TMIP 7-28 Internal pullers

Product Code: TMIP 7-28

Part/No: 033964

Brand: SKF

Click here for more details

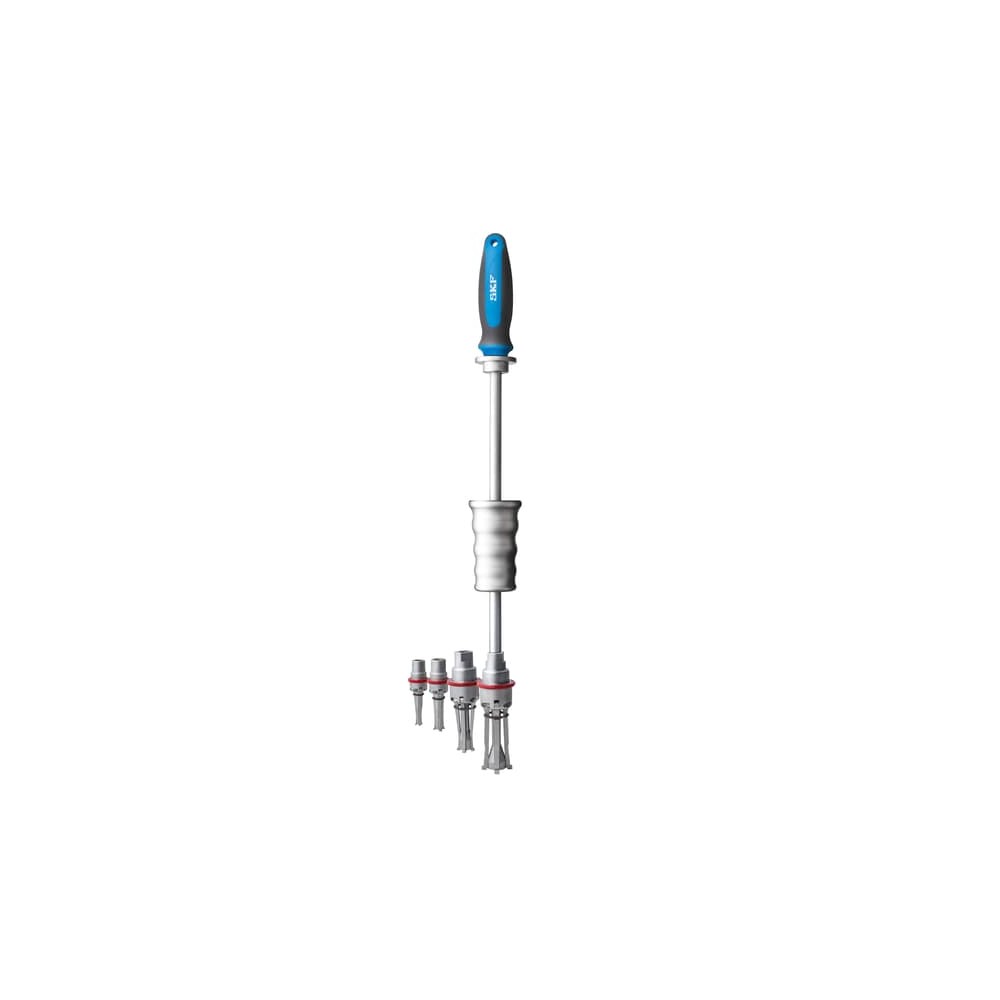

The SKF Internal Bearing Puller Kit TMIP 7-28 is designed for dismounting bearings from housings, where the fit is on the outer ring. The puller is constructed for optimum strength and durability and various extractors are included to support a wide range

Unique patented SKF design makes dismounting easier and helps to safe time
Spring-loaded extractor can be quickly and easily fitted to the inner ring in just one movement
Claw design provides a strong and secure grip behind the inner ring, allowin

€505.87

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Effective arm length 200 mm

Claw height 9.8 mm

Claw length 18 mm

Claw width 28 mm

Puller or Adapter hexagon size 30 mm

Width of grip external 52 - 200 mm

Puller adaptor thread UN 1.25x12 tpi

Properties

Content 4x Extractors size E7-9 to E20-28,1x slidehammer, size S1,1x Printed Instructions for Use (language free),1x Carrying case (size X)

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing

Total product weight 3.1 kg

Special features With unique spring-loaded grip system for easy operation

Width of grip internal 7 – 28 mm

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) No

Dismounting force generation Sliding hammer

Suitable for workpiece dismounting from a Housing Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No

Suitable for bearing dismounting from a Tapered seating (conical shaft) No

Suitable for bearing type(s) All

Total number of extractors in kit 4x = TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28

Total number of sliding hammers in kit 1x =TMIP S1

Slide hammer weight(s) 1.0 kg
