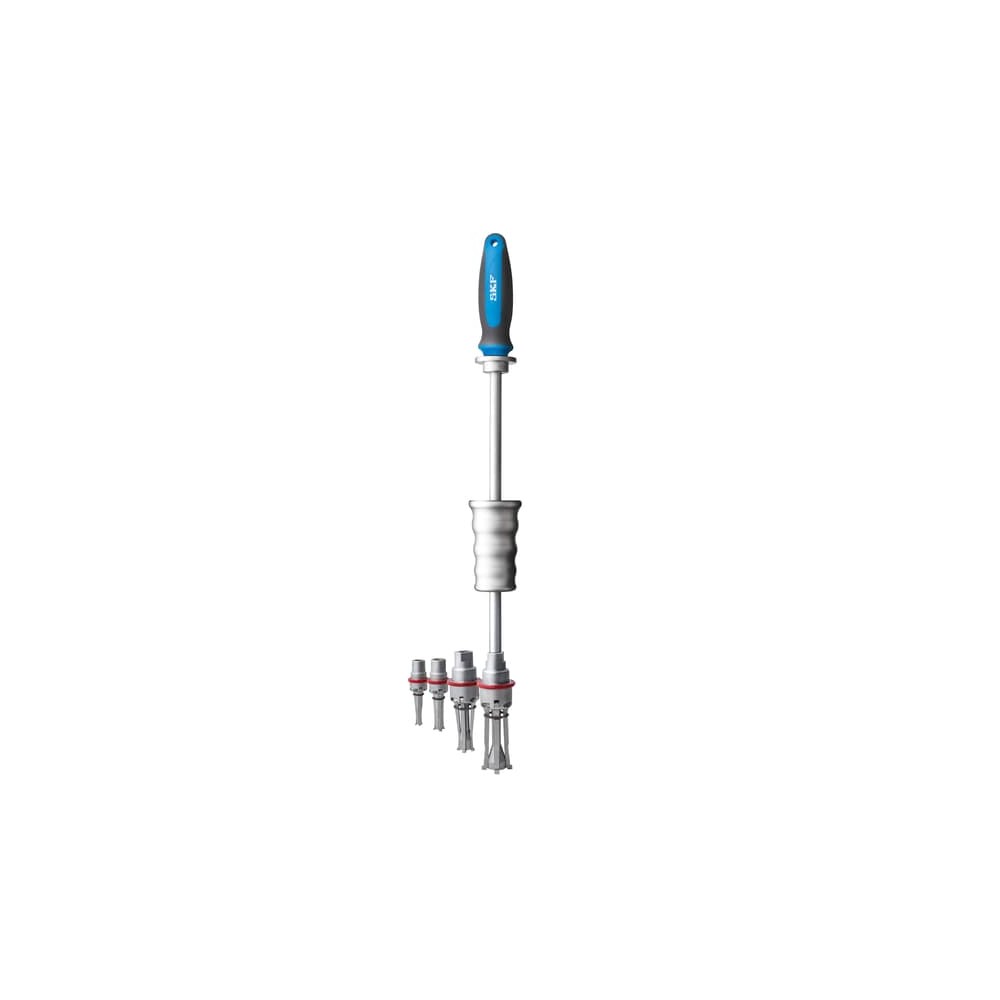

SKF TMIP 7-60 Internal pullers

Product Code: TMIP 7-60

Part/No: 033853

Brand: SKF

Click here for more details

Designed for dismounting bearings from housings where the fit is on the outer ring and the shaft is removed. The pullers are manufactured for optimum strength and durability. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. Comes with a range od extractors and two sliding hammers. Supplied in a sturdy carrying case, the TMIP 7-60 kit is suitable for bearing bores between 7 and 60 mm.

Reduce dismounting time
Unlike most internal bearing pullers, the spring loaded extractors can be quickly and easily fitted to the inner ring in just one quick action
A strong and secure grip behind the inner ring, allows a high puller force to be applied
Supplied with matching sliding hammer sizes
Supplied in handy toolcase

€1,351.54

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Performance

Properties

Material Medium carbon steels and alloy engineering steels, hardened and tempered

Coating Zinc coated

Case dimensions (lxhxw) 530 x 110 x 360 mm

Needed free depth behind workpiece TMIP E7-9: 6 mm; TMIP E10-12: 6 mm;TMIP E15-17: 7.5 mm;TMIP E20-28: 10 mm;TMIP E30-40: 11.5 mm; TMIP E45-60:15 mm

Housing depth (max) TMIP E7-9: 39 mm; TMIP E10-12:45 mm;TMIP E15-17: 55 mm;TMIP E20-28: 60 mm;TMIP E30-40: 97 mm; TMIP E45-60:102 mm

Total extractor length TMIP E7-9: 91 mm; TMIP E10-12: 91 mm;TMIP E15-17: 118 mm;TMIP E20-28: 127 mm;TMIP E30-40: 143 mm; TMIP E45-60:155 mm

Slide hammer total length 417mm;557mm

Suitable for bearing type (s) All

Content 6x Extractors size E7-9 to E45-60;2x slidehammer, sizes S1 and S2 with common handgrip;1x Printed Instructions for Use (language free);1x Carrying case (size C)

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) No

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Sliding hammer

Suitable for workpiece dismounting from a Housing Yes

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No

Suitable for bearing dismounting from a Tapered seating (conical shaft) No

Total number of extractors in kit 6x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28, TMIP E30-40, TMIP E45-60

Total number of sliding hammers in kit 2x :TMIP S1 and TMIP S2 with common handgrip

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing

Slide hammer weight(s) 1.0 kg;2.05 kg

Special features With unique spring-loaded grip system for easy operation

Total product weight 8.8 kg

Width of grip internal 7 – 60 mm

Logistics

Pack gross weight 9.087 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316577697349

Product net weight 8.8 kg

eClass code 23-05-19-01
