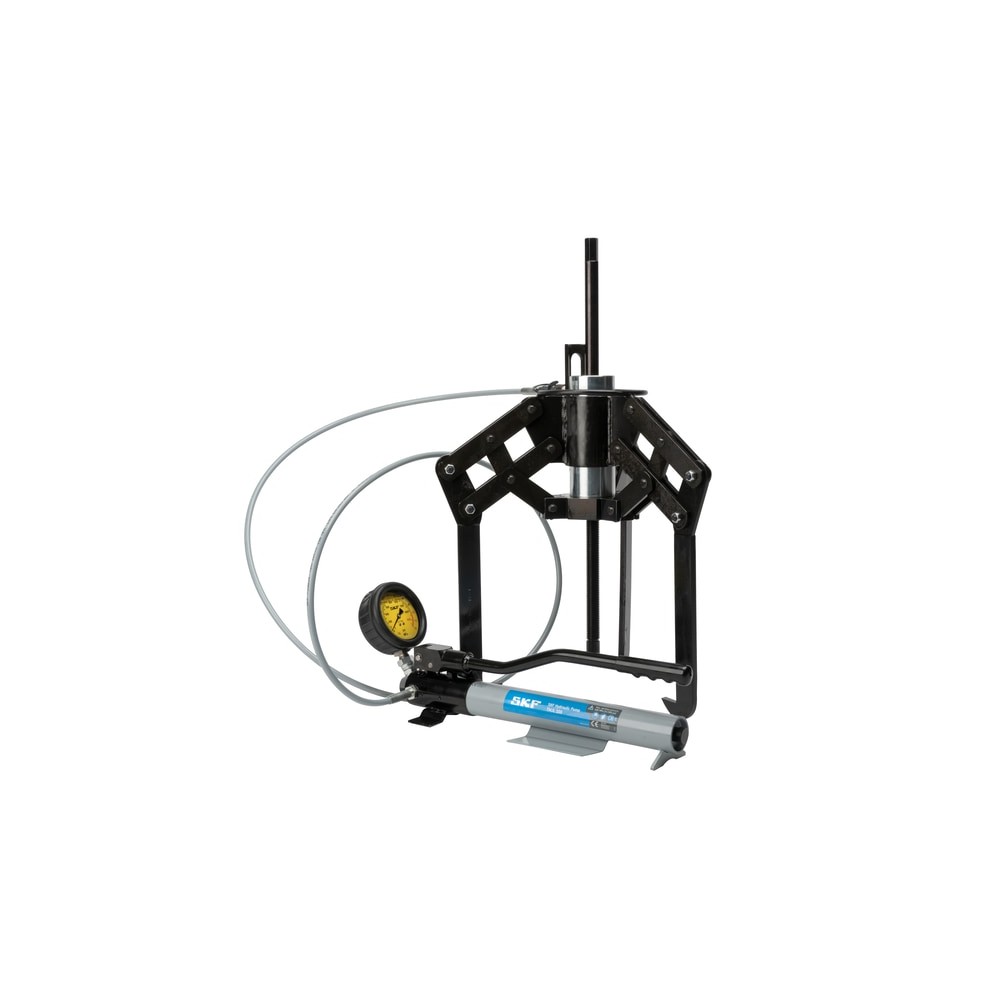

SKF TMHP 15/260 Jaw pullers

Product Code: TMHP 15/260

Part/No: Eshop041399

Brand: SKF

Click here for more details

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 15/260 is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combinat

High pulling forces can be applied easily and safely with self-centring puller
Easy adjustable worklength through combination of spindle and hydraulic cylinder
Unique pantograph system gives eXceptional grip and helps counteract misalignment durin

€6,367.65

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Packsize 180 kg drum

Properties

Content 1x Puller TMHP 15/260,1x TMJL 100 Pump (complete in wooden carrying case),1x Printed instructions for use,1x Piston hold tool,1x Wooden storage crate

Recommended applications For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Black

Special features Pantograph mechanism for parallel openning of arms with selflocking, self centring function, heavy duty version, Spindle allows quick adjustment of the working length,Alternative arm lenghs available.

Product weight 38 kg

Number of arms 3

Pulling force (max) 150 kN

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is included with this puller.

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All

Oil viscosity (maximum) 300

Hydraulic Cylinder, Oil capacity 202 cm³

Hydraulic Cylinder, piston stroke 100 mm

Hydraulic Cylinder, Maximum Operating Pressure (Mpa) 80 MPa

Logistics

EAN code 07316571092782

Product net weight 57.4 kg

eClass name Product for mounting and dismounting and for maintenance
