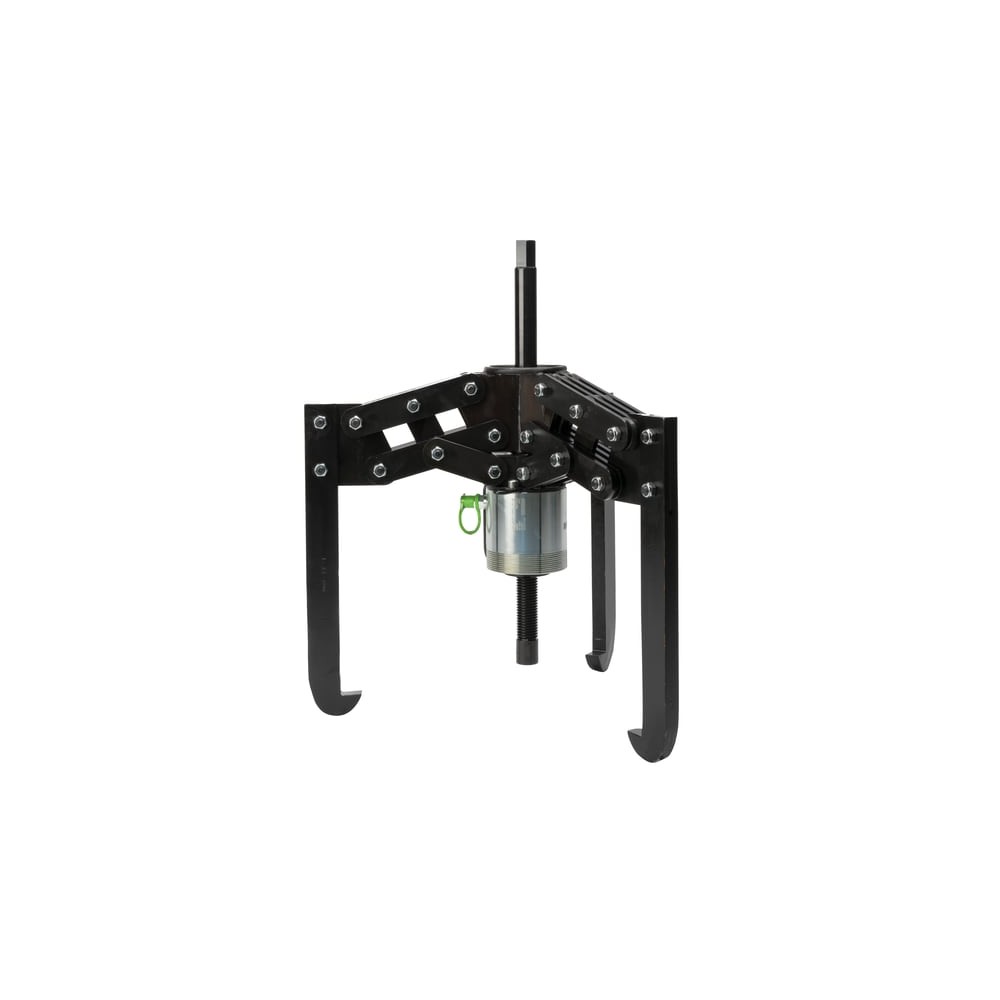

SKF TMHP 50/140X Jaw pullers

Product Code: TMHP 50/140X

Part/No: Eshop041450

Brand: SKF

Click here for more details

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 50/140X is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combina

High pulling forces can be applied easily and safely with self-centring puller
Easy adjustable worklength through combination of spindle and hydraulic cylinder
Unique pantograph system gives eXceptional grip and helps counteract misalignment durin

€8,669.09

Tax included

Quantity

100% Shopping Security

On Request

Properties

Content 1x Puller TMHP 50/140X,1x Printed instructions for use,1x Piston hold tool,1x Wooden storage crate

Recommended applications For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Black

Product weight 59.5 kg

Number of arms 3

Pulling force (max) 500 kN

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is available as accessory.

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All

Oil viscosity (maximum) 300

Hydraulic Cylinder, Oil capacity 260 cm³

Hydraulic Cylinder, piston stroke 40 mm

Hydraulic Cylinder, Maximum Operating Pressure (Mpa) 80 MPa

Logistics

EAN code 07316570343250

Product net weight 59.5 kg

eClass name Product for mounting and dismounting and for maintenance
