SKF TIH L44/LV Induction heaters

SKF TIH L44/LV Induction heaters

Product Code: TIH L44/LV
Part/No: Eshop041912
Brand: SKF

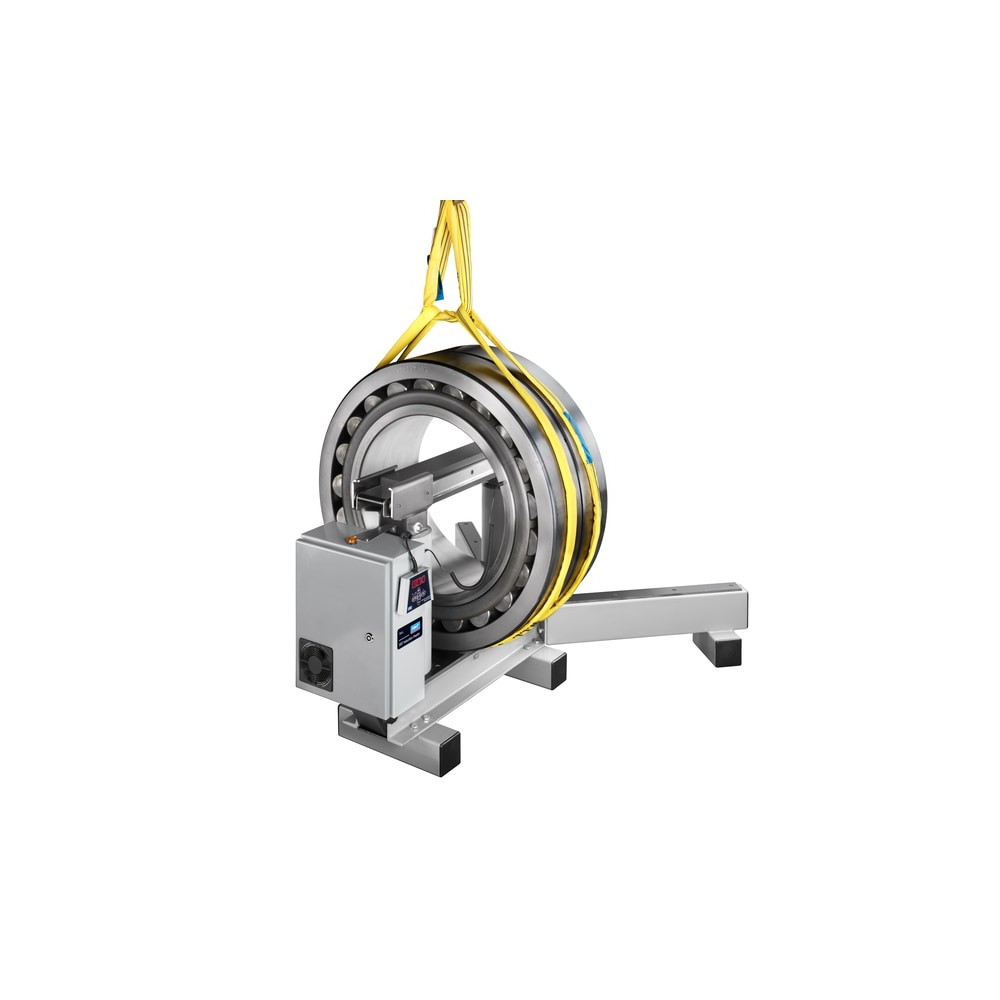

The SKF TIH L44 is a very large induction heater and is designed for the hot mounting of bearings. This heater is characterized by a high heating performance for large bearings and a flexible design that allows bearing heating in either the horizontal or
Standard sliding yoke for ergonomic operation
Designed for bearing heating in horizontal position (around the coil) or vertical position (around the sliding yoke)
Easy and safe to use with automatic temperature control or time controlled heating
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Properties
Voltage 200–240 V
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Colour Light grey, black
Total product weight 365 kg
Voltage frequency 50–60 Hz
Workpiece weight (max) 1200 kg
Demagnetisation after heating (according SKF norms) < 2 A/cm
Cooling fan Yes
Error guiding codes Yes
Thermal overload protection Yes
Housing material Steel, Glass fibre filled polyamide
Heating temperature (max) 250 °C
Power setting 50%,100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 24 kVA
Remote control panel (wired) Yes, with LED display
Bearing support arms Yes, removeable
Yoke storage No
Logistics
EAN code 07316574498666
Product net weight 365 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 429.88 kg
UNSPSC name Induction heaters
