Rod ends, maintenance required (5)

SKF SILKAC 10 M Rod ends

Bore diameter 10 mm

Centre height housing from end of shank 43 mm

Housing length total 58 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 29 mm

Thread G M10

Code: SILKAC 10 M

€27.88

*Prices with vat

On Request

SKF SILA 60 ES-2RS Rod ends

Bore diameter 60 mm

Centre height housing from end of shank 175 mm

Housing length total 246 mm

Width bearing inner ring 44 mm

Width housing eye 39 mm

Diameter Head 137 mm

Thread G M52x3

Code: SILA 60 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SILA 40 ES-2RS Rod ends

Bore diameter 40 mm

Centre height housing from end of shank 142 mm

Housing length total 191 mm

Width bearing inner ring 28 mm

Width housing eye 24 mm

Diameter Head 94 mm

Thread G M39x3

Code: SILA 40 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SIL 8 E Rod ends

Bore diameter 8 mm

Centre height housing from end of shank 36 mm

Housing length total 50 mm

Width bearing inner ring 8 mm

Width housing eye 6.5 mm

Diameter Head 25 mm

Thread G M8

Code: SIL 8 E

€43.33

*Prices with vat

On Request

SKF SIL 6 E Rod ends

Bore diameter 6 mm

Centre height housing from end of shank 30 mm

Housing length total 43 mm

Width bearing inner ring 6 mm

Width housing eye 4.5 mm

Diameter Head 22 mm

Thread G M6

Code: SIL 6 E

€38.63

*Prices with vat

On Request

SKF SIL 50 ES-2RS Rod ends

Bore diameter 50 mm

Centre height housing from end of shank 195 mm

Housing length total 254 mm

Width bearing inner ring 35 mm

Width housing eye 31 mm

Diameter Head 114 mm

Thread G M52x3

Code: SIL 50 ES-2RS

€493.57

*Prices with vat

On Request

SKF SIL 40 ES-2RS Rod ends

Bore diameter 40 mm

Centre height housing from end of shank 145 mm

Housing length total 194 mm

Width bearing inner ring 28 mm

Width housing eye 24 mm

Diameter Head 94 mm

Thread G M42x3

Code: SIL 40 ES-2RS

€305.84

*Prices with vat

On Request

SKF SIL 35 ES-2RS Rod ends

Bore diameter 35 mm

Centre height housing from end of shank 130 mm

Housing length total 174 mm

Width bearing inner ring 25 mm

Width housing eye 22 mm

Diameter Head 84 mm

Thread G M36x3

Code: SIL 35 ES-2RS

€207.52

*Prices with vat

On Request

SKF SIL 30 ES Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 149 mm

Width bearing inner ring 22 mm

Width housing eye 20 mm

Diameter Head 75 mm

Thread G M30x2

Code: SIL 30 ES

€136.49

*Prices with vat

On Request

SKF SIL 25 ES Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 128 mm

Width bearing inner ring 20 mm

Width housing eye 18 mm

Diameter Head 65 mm

Thread G M24x2

Code: SIL 25 ES

€95.69

*Prices with vat

On Request

SKF SIL 20 ES Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 77 mm

Housing length total 106 mm

Width bearing inner ring 16 mm

Width housing eye 13.5 mm

Diameter Head 54 mm

Thread G M20x1.5

Code: SIL 20 ES

€67.50

*Prices with vat

On Request

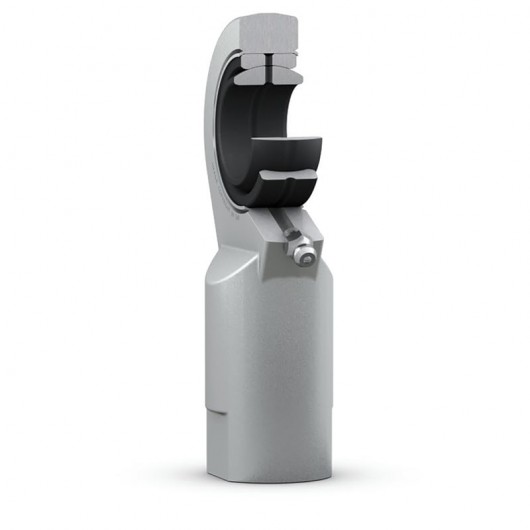

SKF SIL 17 ES Rod ends

Bore diameter 17 mm

Centre height housing from end of shank 67 mm

Housing length total 92 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 47 mm

Thread G M16

Code: SIL 17 ES

€59.94

*Prices with vat

On Request

SKF SIL 15 ES Rod ends

Bore diameter 15 mm

Centre height housing from end of shank 61 mm

Housing length total 83 mm

Width bearing inner ring 12 mm

Width housing eye 10.5 mm

Diameter Head 41 mm

Thread G M14

Code: SIL 15 ES

€61.75

*Prices with vat

On Request

SKF SI 25 ES Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 128 mm

Width bearing inner ring 20 mm

Width housing eye 18 mm

Diameter Head 65 mm

Thread G M24x2

Code: SI 25 ES

€76.09

*Prices with vat

On Request

SKF SI 20 ES Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 77 mm

Housing length total 106 mm

Width bearing inner ring 16 mm

Width housing eye 13.5 mm

Diameter Head 54 mm

Thread G M20x1.5

Code: SI 20 ES

€55.86

*Prices with vat

On Request

DURBAL EFN 20-20-501 Rod ends, maintenance...

Bore diameter 20 mm

Housing length total 102.5 mm

Diameter Head 51 mm

Thread G M20x1.5

Code: EFN 20-20-501

€42.10

*Prices with vat

On Request

SKF SAA 45 ES-2RS Rod ends

Bore diameter 45 mm

Centre height housing from end of shank 163 mm

Housing length total 217 mm

Width bearing inner ring 32 mm

Width housing eye 28 mm

Diameter Head 104 mm

Thread G M42x3

Code: SAA 45 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAKAC 5 M Rod ends

Bore diameter 5 mm

Centre height housing from end of shank 33 mm

Housing length total 44 mm

Width bearing inner ring 8 mm

Width housing eye 7.5 mm

Diameter Head 19 mm

Thread G M5

Code: SAKAC 5 M

€40.77

*Prices with vat

On Request

SKF SAKAC 30 M Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 148 mm

Width bearing inner ring 37 mm

Width housing eye 27 mm

Diameter Head 71 mm

Thread G M30x2

Code: SAKAC 30 M

€150.22

*Prices with vat

On Request

SKF SAKAC 25 M Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 127 mm

Width bearing inner ring 31 mm

Width housing eye 23 mm

Diameter Head 61 mm

Thread G M24x2

Code: SAKAC 25 M

€112.79

*Prices with vat

On Request

SKF SAKAC 22 M Rod ends

Bore diameter 22 mm

Centre height housing from end of shank 84 mm

Housing length total 114 mm

Width bearing inner ring 28 mm

Width housing eye 21 mm

Diameter Head 55 mm

Thread G M22x1.5

Code: SAKAC 22 M

€91.22

*Prices with vat

On Request

SKF SAKAC 20 M Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 78 mm

Housing length total 106 mm

Width bearing inner ring 25 mm

Width housing eye 18.5 mm

Diameter Head 51 mm

Thread G M20x1.5

Code: SAKAC 20 M

€73.36

*Prices with vat

On Request

SKF SAKAC 18 M Rod ends

Bore diameter 18 mm

Centre height housing from end of shank 72 mm

Housing length total 97 mm

Width bearing inner ring 23 mm

Width housing eye 17.5 mm

Diameter Head 47 mm

Thread G M18x1.5

Code: SAKAC 18 M

€64.44

*Prices with vat

On Request

SKF SAKAC 16 M Rod ends

Bore diameter 16 mm

Centre height housing from end of shank 66 mm

Housing length total 89 mm

Width bearing inner ring 21 mm

Width housing eye 15.5 mm

Diameter Head 43 mm

Thread G M16

Code: SAKAC 16 M

€56.51

*Prices with vat

On Request

SKF SAKAC 14 M Rod ends

Bore diameter 14 mm

Centre height housing from end of shank 60 mm

Housing length total 80 mm

Width bearing inner ring 19 mm

Width housing eye 14.5 mm

Diameter Head 37 mm

Thread G M14

Code: SAKAC 14 M

€51.98

*Prices with vat

On Request

SKF SAKAC 12 M Rod ends

Bore diameter 12 mm

Centre height housing from end of shank 54 mm

Housing length total 72 mm

Width bearing inner ring 16 mm

Width housing eye 12.5 mm

Diameter Head 33 mm

Thread G M12

Code: SAKAC 12 M

€36.68

*Prices with vat

On Request

SKF SAKAC 10 M Rod ends

Bore diameter 10 mm

Centre height housing from end of shank 48 mm

Housing length total 64 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 29 mm

Thread G M10

Code: SAKAC 10 M

€32.07

*Prices with vat

On Request

SKF SAA 80 ES-2RS Rod ends

Bore diameter 80 mm

Centre height housing from end of shank 270 mm

Housing length total 364 mm

Width bearing inner ring 55 mm

Width housing eye 48 mm

Diameter Head 182 mm

Thread G M64x4

Code: SAA 80 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAA 60 ES-2RS Rod ends

Bore diameter 60 mm

Centre height housing from end of shank 210 mm

Housing length total 281 mm

Width bearing inner ring 44 mm

Width housing eye 39 mm

Diameter Head 137 mm

Thread G M52x3

Code: SAA 60 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAA 50 ES-2RS Rod ends

Bore diameter 50 mm

Centre height housing from end of shank 185 mm

Housing length total 244 mm

Width bearing inner ring 35 mm

Width housing eye 31 mm

Diameter Head 114 mm

Thread G M45x3

Code: SAA 50 ES-2RS

€375.48

*Prices with vat

On Request

SKF SAA 40 ES-2RS Rod ends

Bore diameter 40 mm

Centre height housing from end of shank 150 mm

Housing length total 199 mm

Width bearing inner ring 28 mm

Width housing eye 24 mm

Diameter Head 94 mm

Thread G M39x3

Code: SAA 40 ES-2RS

€244.72

*Prices with vat

On Request

SKF SAKAC 8 M Rod ends

Bore diameter 8 mm

Centre height housing from end of shank 42 mm

Housing length total 56 mm

Width bearing inner ring 12 mm

Width housing eye 9.5 mm

Diameter Head 25 mm

Thread G M8

Code: SAKAC 8 M

€25.96

*Prices with vat

On Request

SKF SA 8 E Rod ends

Bore diameter 8 mm

Centre height housing from end of shank 42 mm

Housing length total 56 mm

Width bearing inner ring 8 mm

Width housing eye 6.5 mm

Diameter Head 25 mm

Thread G M8

Code: SA 8 E

€30.84

*Prices with vat

On Request

SKF SA 60 ES-2RS Rod ends

Bore diameter 60 mm

Centre height housing from end of shank 225 mm

Housing length total 296 mm

Width bearing inner ring 44 mm

Width housing eye 39 mm

Diameter Head 137 mm

Thread G M60x4

Code: SA 60 ES-2RS

€0.00

(*The price will be determined)

On Request

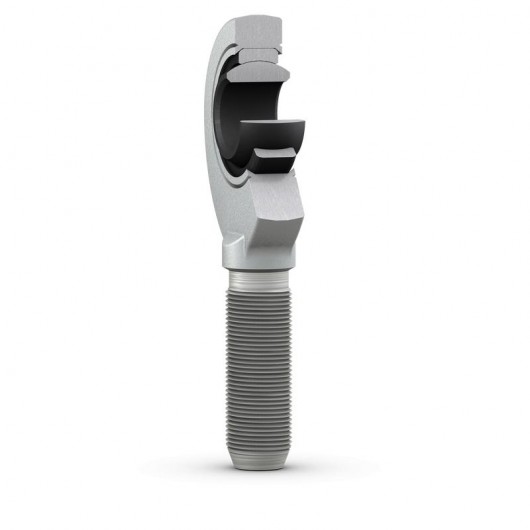

SKF SA 6 E Rod ends

Bore diameter 6 mm

Centre height housing from end of shank 36 mm

Housing length total 49 mm

Width bearing inner ring 6 mm

Width housing eye 4.5 mm

Diameter Head 22 mm

Thread G M6

Code: SA 6 E

€41.16

*Prices with vat

On Request

SKF SA 50 ES-2RS Rod ends

Bore diameter 50 mm

Centre height housing from end of shank 195 mm

Housing length total 254 mm

Width bearing inner ring 35 mm

Width housing eye 31 mm

Diameter Head 114 mm

Thread G M52x3

Code: SA 50 ES-2RS

€378.23

*Prices with vat

On Request

SKF SA 45 ES-2RS Rod ends

Bore diameter 45 mm

Centre height housing from end of shank 165 mm

Housing length total 219 mm

Width bearing inner ring 32 mm

Width housing eye 28 mm

Diameter Head 104 mm

Thread G M45x3

Code: SA 45 ES-2RS

€314.58

*Prices with vat

On Request

SKF SA 40 ES-2RS Rod ends

Bore diameter 40 mm

Centre height housing from end of shank 145 mm

Housing length total 194 mm

Width bearing inner ring 28 mm

Width housing eye 24 mm

Diameter Head 94 mm

Thread G M42x3

Code: SA 40 ES-2RS

€232.29

*Prices with vat

On Request

SKF SA 35 ES-2RS Rod ends

Bore diameter 35 mm

Centre height housing from end of shank 130 mm

Housing length total 174 mm

Width bearing inner ring 25 mm

Width housing eye 22 mm

Diameter Head 84 mm

Thread G M36x3

Code: SA 35 ES-2RS

€160.04

*Prices with vat

On Request

SKF SA 30 ES-2RS Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 149 mm

Width bearing inner ring 22 mm

Width housing eye 20 mm

Diameter Head 75 mm

Thread G M30x2

Code: SA 30 ES-2RS

€144.86

*Prices with vat

On Request

SKF SA 30 ES Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 149 mm

Width bearing inner ring 22 mm

Width housing eye 20 mm

Diameter Head 75 mm

Thread G M30x2

Code: SA 30 ES

€94.63

*Prices with vat

On Request

SKF SA 25 ES Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 128 mm

Width bearing inner ring 20 mm

Width housing eye 18 mm

Diameter Head 65 mm

Thread G M24x2

Code: SA 25 ES

€65.76

*Prices with vat

On Request

SKF SA 20 ES Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 78 mm

Housing length total 107 mm

Width bearing inner ring 16 mm

Width housing eye 13.5 mm

Diameter Head 54 mm

Thread G M20x1.5

Code: SA 20 ES

€49.44

*Prices with vat

On Request

SKF SA 17 ES Rod ends

Bore diameter 17 mm

Centre height housing from end of shank 69 mm

Housing length total 94 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 47 mm

Thread G M16

Code: SA 17 ES

€48.66

*Prices with vat

On Request

SKF SA 15 ES Rod ends

Bore diameter 15 mm

Centre height housing from end of shank 63 mm

Housing length total 85 mm

Width bearing inner ring 12 mm

Width housing eye 10.5 mm

Diameter Head 41 mm

Thread G M14

Code: SA 15 ES

€45.92

*Prices with vat

On Request

SKF SAKAC 6 M Rod ends

Bore diameter 6 mm

Centre height housing from end of shank 36 mm

Housing length total 48 mm

Width bearing inner ring 9 mm

Width housing eye 7.5 mm

Diameter Head 21 mm

Thread G M6

Code: SAKAC 6 M

€23.76

*Prices with vat

On Request

SKF SAL 10 E Rod ends

Bore diameter 10 mm

Centre height housing from end of shank 48 mm

Housing length total 65 mm

Width bearing inner ring 9 mm

Width housing eye 7.5 mm

Diameter Head 30 mm

Thread G M10

Code: SAL 10 E

€46.61

*Prices with vat

On Request

SKF SI 17 ES Rod ends

Bore diameter 17 mm

Centre height housing from end of shank 67 mm

Housing length total 92 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 47 mm

Thread G M16

Code: SI 17 ES

€53.90

*Prices with vat

On Request

SKF SALKAC 10 M Rod ends

Bore diameter 10 mm

Centre height housing from end of shank 48 mm

Housing length total 64 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 29 mm

Thread G M10

Code: SALKAC 10 M

€36.25

*Prices with vat

On Request

SKF SI 15 ES Rod ends

Bore diameter 15 mm

Centre height housing from end of shank 61 mm

Housing length total 83 mm

Width bearing inner ring 12 mm

Width housing eye 10.5 mm

Diameter Head 41 mm

Thread G M14

Code: SI 15 ES

€50.94

*Prices with vat

On Request

SKF SI 12 E Rod ends

Bore diameter 12 mm

Centre height housing from end of shank 50 mm

Housing length total 69 mm

Width bearing inner ring 10 mm

Width housing eye 8.5 mm

Diameter Head 35 mm

Thread G M12

Code: SI 12 E

€42.09

*Prices with vat

On Request

SKF SI 10 E Rod ends

Bore diameter 10 mm

Centre height housing from end of shank 43 mm

Housing length total 60 mm

Width bearing inner ring 9 mm

Width housing eye 7.5 mm

Diameter Head 30 mm

Thread G M10

Code: SI 10 E

€38.39

*Prices with vat

On Request

SKF SALKAC 8 M Rod ends

Bore diameter 8 mm

Centre height housing from end of shank 42 mm

Housing length total 56 mm

Width bearing inner ring 12 mm

Width housing eye 9.5 mm

Diameter Head 25 mm

Thread G M8

Code: SALKAC 8 M

€29.36

*Prices with vat

On Request

SKF SALKAC 6 M Rod ends

Bore diameter 6 mm

Centre height housing from end of shank 36 mm

Housing length total 48 mm

Width bearing inner ring 9 mm

Width housing eye 7.5 mm

Diameter Head 21 mm

Thread G M6

Code: SALKAC 6 M

€26.90

*Prices with vat

On Request

SKF SALKAC 5 M Rod ends

Bore diameter 5 mm

Centre height housing from end of shank 33 mm

Housing length total 44 mm

Width bearing inner ring 8 mm

Width housing eye 7.5 mm

Diameter Head 19 mm

Thread G M5

Code: SALKAC 5 M

€48.92

*Prices with vat

On Request

SKF SALKAC 30 M Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 148 mm

Width bearing inner ring 37 mm

Width housing eye 27 mm

Diameter Head 71 mm

Thread G M30x2

Code: SALKAC 30 M

€176.89

*Prices with vat

On Request

SKF SALKAC 25 M Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 127 mm

Width bearing inner ring 31 mm

Width housing eye 23 mm

Diameter Head 61 mm

Thread G M24x2

Code: SALKAC 25 M

€132.89

*Prices with vat

On Request

SKF SALKAC 22 M Rod ends

Bore diameter 22 mm

Centre height housing from end of shank 84 mm

Housing length total 114 mm

Width bearing inner ring 28 mm

Width housing eye 21 mm

Diameter Head 55 mm

Thread G M22x1.5

Code: SALKAC 22 M

€127.16

*Prices with vat

On Request

SKF SALKAC 20 M Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 78 mm

Housing length total 106 mm

Width bearing inner ring 25 mm

Width housing eye 18.5 mm

Diameter Head 51 mm

Thread G M20x1.5

Code: SALKAC 20 M

€84.55

*Prices with vat

On Request

SKF SALKAC 16 M Rod ends

Bore diameter 16 mm

Centre height housing from end of shank 66 mm

Housing length total 89 mm

Width bearing inner ring 21 mm

Width housing eye 15.5 mm

Diameter Head 43 mm

Thread G M16

Code: SALKAC 16 M

€63.93

*Prices with vat

On Request

SKF SALKAC 14 M Rod ends

Bore diameter 14 mm

Centre height housing from end of shank 60 mm

Housing length total 80 mm

Width bearing inner ring 19 mm

Width housing eye 14.5 mm

Diameter Head 37 mm

Thread G M14

Code: SALKAC 14 M

€62.35

*Prices with vat

On Request

SKF SALKAC 12 M Rod ends

Bore diameter 12 mm

Centre height housing from end of shank 54 mm

Housing length total 72 mm

Width bearing inner ring 16 mm

Width housing eye 12.5 mm

Diameter Head 33 mm

Thread G M12

Code: SALKAC 12 M

€41.49

*Prices with vat

On Request

SKF SALA 80 ES-2RS Rod ends

Bore diameter 80 mm

Centre height housing from end of shank 270 mm

Housing length total 364 mm

Width bearing inner ring 55 mm

Width housing eye 48 mm

Diameter Head 182 mm

Thread G M64x4

Code: SALA 80 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAL 12 E Rod ends

Bore diameter 12 mm

Centre height housing from end of shank 54 mm

Housing length total 73 mm

Width bearing inner ring 10 mm

Width housing eye 8.5 mm

Diameter Head 35 mm

Thread G M12

Code: SAL 12 E

€37.13

*Prices with vat

On Request

SKF SALA 50 ES-2RS Rod ends

Bore diameter 50 mm

Centre height housing from end of shank 185 mm

Housing length total 244 mm

Width bearing inner ring 35 mm

Width housing eye 31 mm

Diameter Head 114 mm

Thread G M45x3

Code: SALA 50 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SALA 45 ES-2RS Rod ends

Bore diameter 45 mm

Centre height housing from end of shank 163 mm

Housing length total 217 mm

Width bearing inner ring 32 mm

Width housing eye 28 mm

Diameter Head 104 mm

Thread G M42x3

Code: SALA 45 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAL 8 E Rod ends

Bore diameter 8 mm

Centre height housing from end of shank 42 mm

Housing length total 56 mm

Width bearing inner ring 8 mm

Width housing eye 6.5 mm

Diameter Head 25 mm

Thread G M8

Code: SAL 8 E

€32.05

*Prices with vat

On Request

SKF SAL 60 ES-2RS Rod ends

Bore diameter 60 mm

Centre height housing from end of shank 225 mm

Housing length total 296 mm

Width bearing inner ring 44 mm

Width housing eye 39 mm

Diameter Head 137 mm

Thread G M60x4

Code: SAL 60 ES-2RS

€0.00

(*The price will be determined)

On Request

SKF SAL 6 E Rod ends

Bore diameter 6 mm

Centre height housing from end of shank 36 mm

Housing length total 49 mm

Width bearing inner ring 6 mm

Width housing eye 4.5 mm

Diameter Head 22 mm

Thread G M6

Code: SAL 6 E

€41.70

*Prices with vat

On Request

SKF SAL 50 ES-2RS Rod ends

Bore diameter 50 mm

Centre height housing from end of shank 195 mm

Housing length total 254 mm

Width bearing inner ring 35 mm

Width housing eye 31 mm

Diameter Head 114 mm

Thread G M52x3

Code: SAL 50 ES-2RS

€452.86

*Prices with vat

On Request

SKF SAL 45 ES-2RS Rod ends

Bore diameter 45 mm

Centre height housing from end of shank 165 mm

Housing length total 219 mm

Width bearing inner ring 32 mm

Width housing eye 28 mm

Diameter Head 104 mm

Thread G M45x3

Code: SAL 45 ES-2RS

€361.73

*Prices with vat

On Request

SKF SAL 40 ES-2RS Rod ends

Bore diameter 40 mm

Centre height housing from end of shank 145 mm

Housing length total 194 mm

Width bearing inner ring 28 mm

Width housing eye 24 mm

Diameter Head 94 mm

Thread G M42x3

Code: SAL 40 ES-2RS

€267.26

*Prices with vat

On Request

SKF SAL 35 ES-2RS Rod ends

Bore diameter 35 mm

Centre height housing from end of shank 130 mm

Housing length total 174 mm

Width bearing inner ring 25 mm

Width housing eye 22 mm

Diameter Head 84 mm

Thread G M36x3

Code: SAL 35 ES-2RS

€184.02

*Prices with vat

On Request

SKF SAL 30 ES Rod ends

Bore diameter 30 mm

Centre height housing from end of shank 110 mm

Housing length total 149 mm

Width bearing inner ring 22 mm

Width housing eye 20 mm

Diameter Head 75 mm

Thread G M30x2

Code: SAL 30 ES

€128.05

*Prices with vat

On Request

SKF SAL 25 ES Rod ends

Bore diameter 25 mm

Centre height housing from end of shank 94 mm

Housing length total 128 mm

Width bearing inner ring 20 mm

Width housing eye 18 mm

Diameter Head 65 mm

Thread G M24x2

Code: SAL 25 ES

€89.14

*Prices with vat

On Request

SKF SAL 20 ES Rod ends

Bore diameter 20 mm

Centre height housing from end of shank 78 mm

Housing length total 107 mm

Width bearing inner ring 16 mm

Width housing eye 13.5 mm

Diameter Head 54 mm

Thread G M20x1.5

Code: SAL 20 ES

€72.60

*Prices with vat

On Request

SKF SAL 17 ES Rod ends

Bore diameter 17 mm

Centre height housing from end of shank 69 mm

Housing length total 94 mm

Width bearing inner ring 14 mm

Width housing eye 11.5 mm

Diameter Head 47 mm

Thread G M16

Code: SAL 17 ES

€53.10

*Prices with vat

On Request

SKF SAL 15 ES Rod ends

Bore diameter 15 mm

Centre height housing from end of shank 63 mm

Housing length total 85 mm

Width bearing inner ring 12 mm

Width housing eye 10.5 mm

Diameter Head 41 mm

Thread G M14

Code: SAL 15 ES

€57.96

*Prices with vat

On Request

DURBAL DSAL 40 ES Rod ends, maintenance...

Bore diameter 40 mm

Housing length total 196 mm

Diameter Head 92 mm

Thread G M39x3

Code: DSAL 40 ES

€59.28

*Prices with vat

On Request

DURBAL DSA 40 ES Rod ends, maintenance...

Bore diameter 40 mm

Housing length total 196 mm

Diameter Head 92 mm

Thread G M39x3

Code: DSA 40 ES

€59.28

*Prices with vat

On Request

DURBAL EMN 20-20-502 Rod ends, maintenance...

Bore diameter 20 mm

Housing length total 103.5 mm

Diameter Head 51 mm

Thread G M20x1.5

Code: EMN 20-20-502

€42.10

*Prices with vat

On Request

DURBAL BEFN 30-21-501 Rod ends,...

Bore diameter 30 mm

Housing length total 145 mm

Diameter Head 70 mm

Thread G M27x2

Code: BEFN 30-21-501

€117.99

*Prices with vat

On Request

DURBAL BEFN 10-81-502 Rod ends,...

Bore diameter 10 mm

Housing length total 57 mm

Diameter Head 28 mm

Thread G M10x1.25

Code: BEFN 10-81-502

€33.79

*Prices with vat

On Request

DURBAL BEFN 10-81-501 Rod ends,...

Bore diameter 10 mm

Housing length total 57 mm

Diameter Head 28 mm

Thread G M10x1.25

Code: BEFN 10-81-501

€33.79

*Prices with vat

On Request

DURBAL BEFN 10-80-502 Rod ends,...

Bore diameter 10 mm

Housing length total 57 mm

Diameter Head 28 mm

Thread G M10

Code: BEFN 10-80-502

€33.79

*Prices with vat

On Request

DURBAL BEFN 10-80-501 Rod ends,...

Bore diameter 10 mm

Housing length total 57 mm

Diameter Head 28 mm

Thread G M10

Code: BEFN 10-80-501

€33.79

*Prices with vat

On Request

DURBAL BEFN 08-80-502 Rod ends,...

Bore diameter 8 mm

Housing length total 48 mm

Diameter Head 24 mm

Thread G M8

Code: BEFN 08-80-502

€29.95

*Prices with vat

On Request

DURBAL BEFN 08-80-501 Rod ends,...

Bore diameter 8 mm

Housing length total 48 mm

Diameter Head 24 mm

Thread G M8

Code: BEFN 08-80-501

€29.95

*Prices with vat

On Request

DURBAL BEFN 06-80-502 Rod ends,...

Bore diameter 6 mm

Housing length total 40 mm

Diameter Head 20 mm

Thread G M6

Code: BEFN 06-80-502

€29.20

*Prices with vat

On Request

DURBAL BEFN 06-80-501 Rod ends,...

Bore diameter 6 mm

Housing length total 40 mm

Diameter Head 20 mm

Thread G M6

Code: BEFN 06-80-501

€29.20

*Prices with vat

On Request

PRODUCTS

Filter by

ONLY PRODUCTS IN STOCK

Manufacturers

Bore diameter

Centre height housing from end of shank

Housing length total

Width bearing inner ring

Width housing eye

Diameter Head

Thread G

Price

Our Address

Information

Customer Service
